5-30 pcs automatic wet wipe production line mainly produces various 5-30 pieces of back-seal wet wipes, baby wipes, personal hygiene wipes, alcohol disinfection wipes, hotel wipes, kitchen wipes, leather wipes, portable wet wipes towel etc.

Features:
1. Double-row non-woven fabric longitudinal folding device is adopted, and the non-woven fabric is slit and conveyed synchronously on-line.
2. Double labeling mechanism, automatic opening and labeling on the packaging film. The opening position and labeling position are set on the touch screen.
3. Smooth reciprocating sealing device.
4. Automatic counting of wet wipes.

Main data:

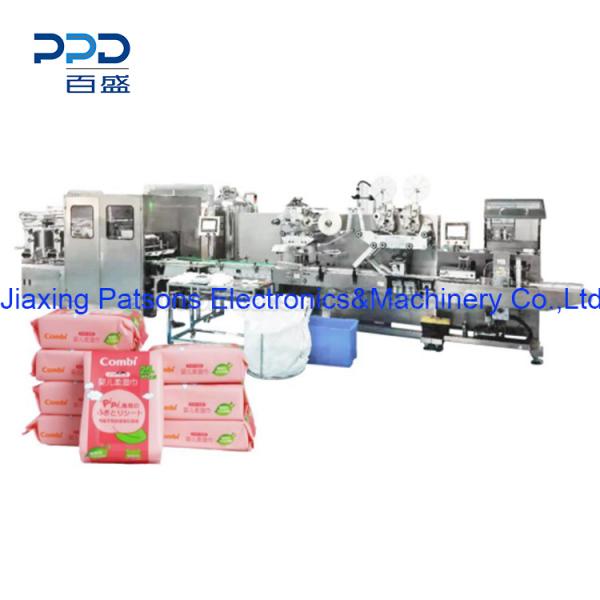

Name: 5-30 pcs automatic wet wipe production line
Model: PPD-66
Applicable raw materials: non-woven fabrics such as spunlace non-woven fabrics, hot-rolled fabrics, etc.
Parent roll outer diameter 1100mm
Parent roll width: 200mm
Inner diameter of parent roll: 76mm
Folding method: independent extraction
Axis number setting: 2-axis base paper, two tracks per axis; 1-axis running and 1-axis standby
Folding size: L70-100mm W65-100mm
Expanded size: L140-200mm W130-200mm
Production speed: 75 bags/minute (1000 pieces/minute)
Voltage: 380V,3ph, 50/60hz
Power:20kw
Gas source requirements: 0.6-0.8Mpa
Machine size: 13000mm*1600mm*2100mm(L*W*H)
Machine weight: 7000kg
