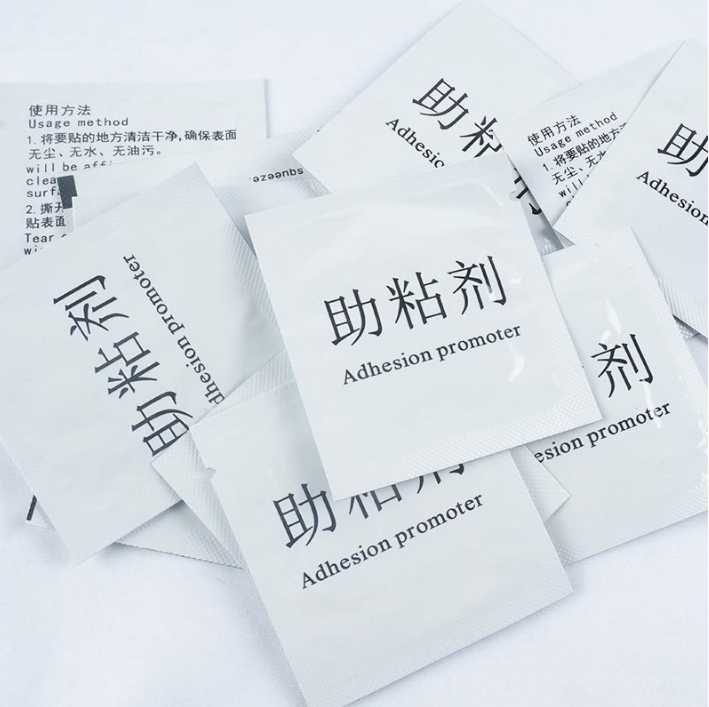

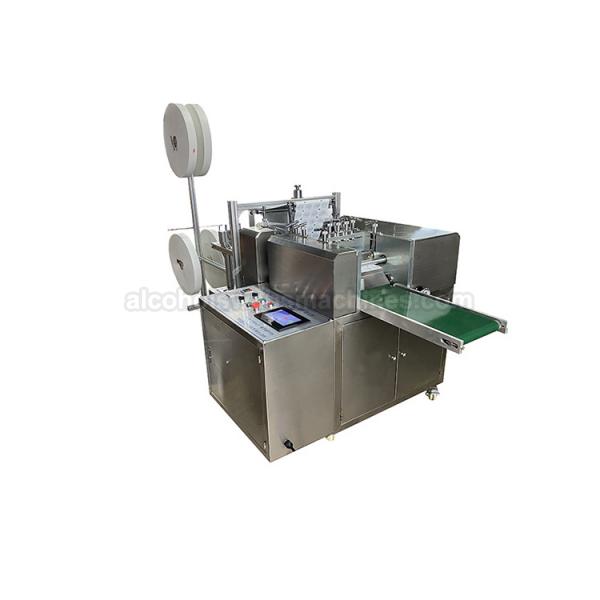

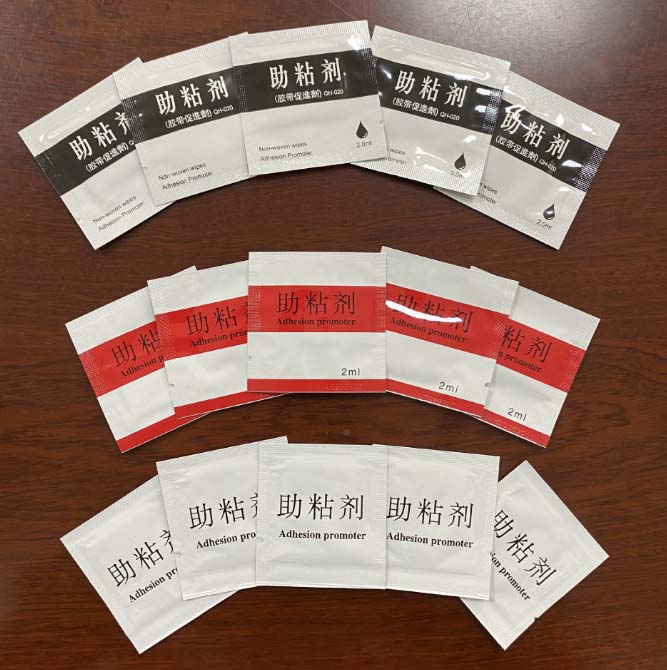

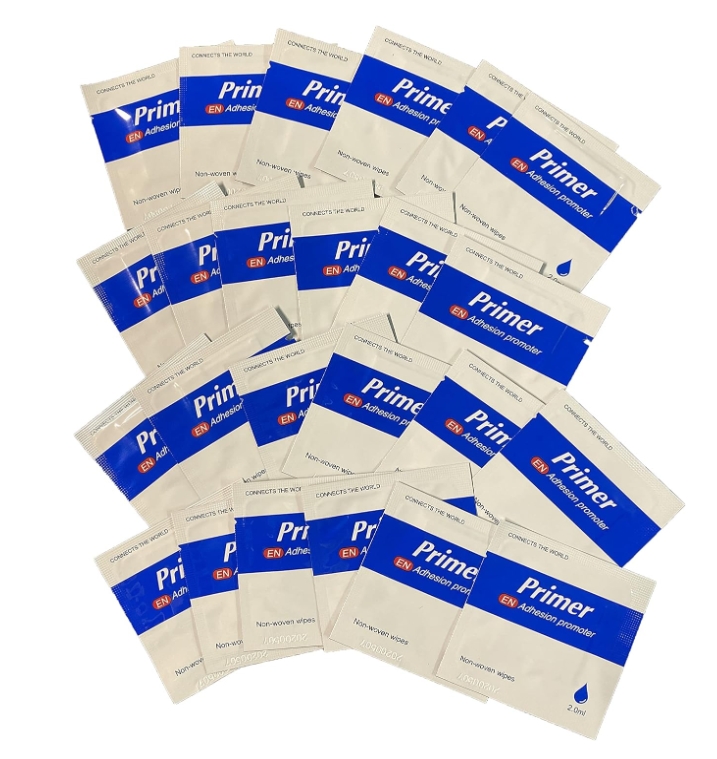

Adhesion promoter packaging machine is a specialized packaging equipment designed to efficiently package adhesion promoter products in four-side sealed pouches. These machines are essential for industries such as automotive, electronics, and construction, where adhesion promoters are commonly used to enhance bonding between surfaces.
Machine with its stable and efficient excellent quality, is very suitable for mass production by enterprises.

Features:
1.Color touch screen operation interface operation, servo drive system, PLC programmable controller intelligently controls the operation of the whole machine, accurate film feeding, stable cotton sheet transmission, and accurate bag cutting.
2.Precision liquid pump, the amount of liquid added is set directly on the touch screen.
3.Tight sealing, no leakage, and no bubbles under the premise of high liquid addition.
4.The whole machine runs stably and has a high output: 280-320 bags/min.
5.Easy tear notch device:Easy to open the sachet with the cutted notch.

Process flow:
Non-woven fabric and packaging roll film are put on the machine → non-woven fabric is folded in half longitudinally → cut → folded in half horizontally → liquid is added → folded sheet output → bag making → packaging → sealing → output packaged finished products.

Main Technical Parameters:
Name:Adhesion Promoter Packaging Machine
Model: PPD-APPM280
Unfolded alcohol sheet size: 60mm × 60mm (LxW)
Folded alcohol sheet size: 30mm × 30mm (LxW)
Cotton sheet folding method: fold two times, 4 layers
Bag size: 60mm × 60mm (LxW)
Processing capacity: 200-300 bags/min
Packaging film material: 73-110g/㎡ aluminum-plated composite packaging film
Packaging film specifications: OD≤350 mm, width 480mm, paper core inner diameter 76.2mm
Applicable cotton sheet raw material: 60g/㎡ spunlace non-woven fabric, width 60mm, diameter ≤600mm
Raw material paper core inner diameter: Φ 76.2mm (=3")
Total power: 220v, 50hz, 5kw
Weight: 550 kg
Machine Dimensions: 2800 × 1300 × 1500mm(LxWxH)
