Automatic gauze folding machine can fold gauze swab with folded edge and unfold edge.
Machine is used to automatic folding of cotton gauze,bandage gauze,gauze swab etc.

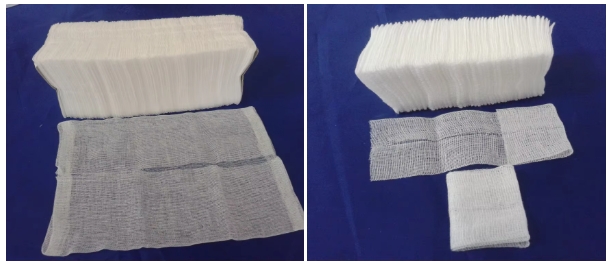

To fold gauze pad 5x5cm, 7.5x7.5cm, 10x10cm, 8ply, 12ply, 16ply etc.

Features:
1.Machine works with tension control system,easy to control tension of gauze roll material.
2.Automatic spraying device and special edge folding cam ensure excellent gauze folding results, preventing the edges from coming loose.
3.Automatic counting system.

Main Data:
Name:Automatic Gauze Folding Machine
Model:PPD-GFM1000
Jumbo roll outer diameter: max1000mm
Gauze folded size:5x5cm,7.5x7.5cm,10x10cm
Available layer:8,12,16 option
Speed:max360pcs/min
Voltage:380V,50hz
Power:6kw
Air supply:0.6Mpa
