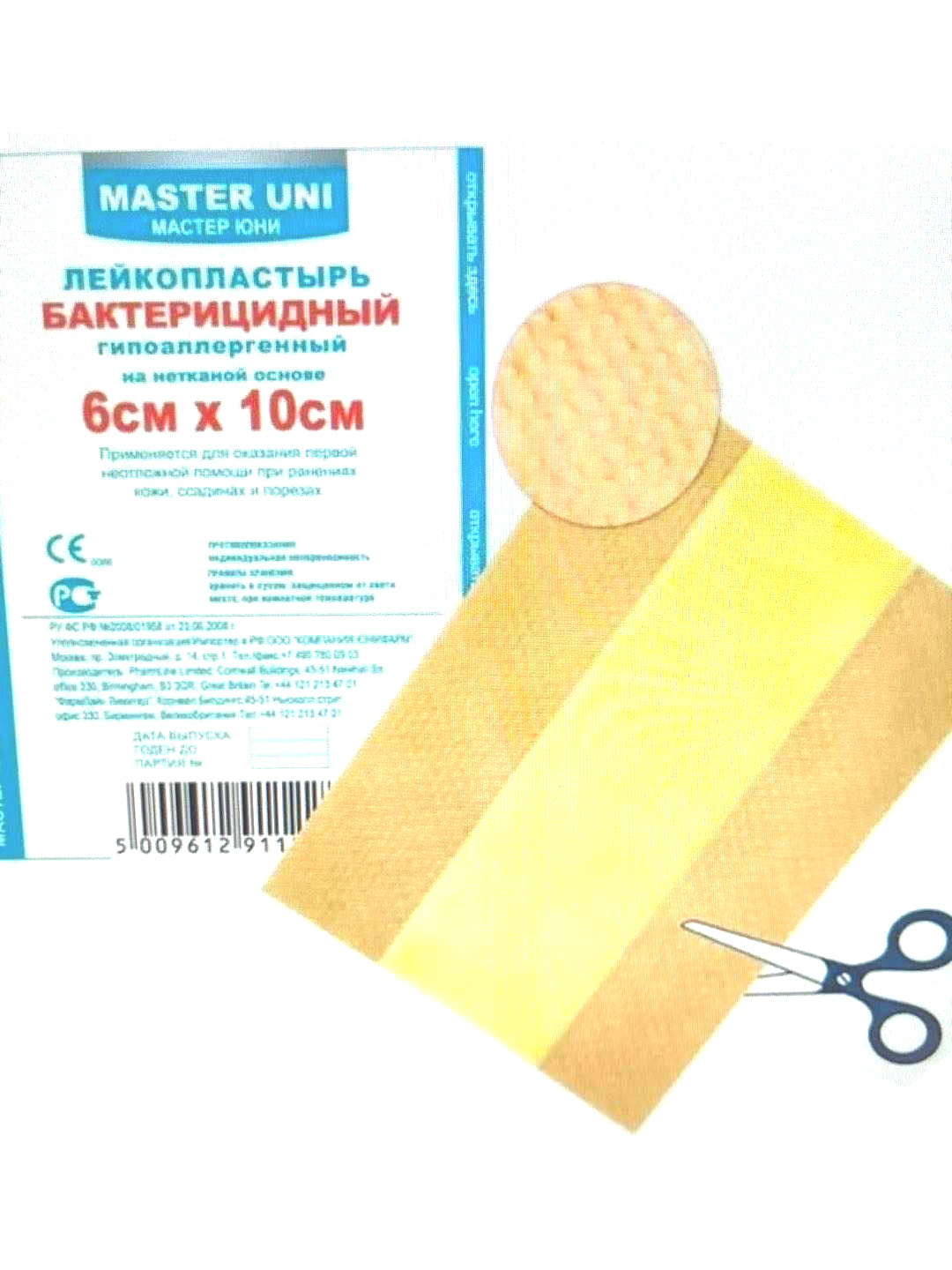

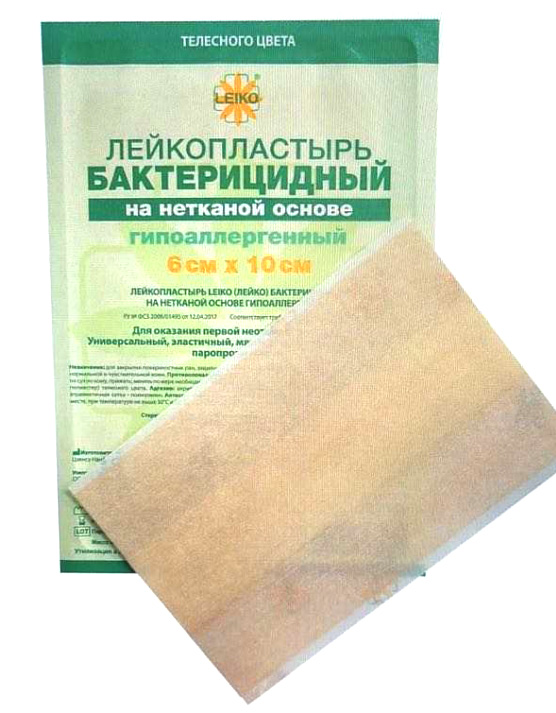

Automatic medical dressing wound dressing medical patch machine is mainly used for continuous rolling cutting, laminating, forming cutting, and automatic packaging of tape, cotton, and release paper. It is suitable for processing and packaging nonwoven fabric dressings, PU waterproof dressings, wound dressings, self-adhesive sterile dressings, infusion dressings, retention needle dressings, and other application products.

Features:
1. The machine adopts advanced servo technology as the core, PLC programmable controller, intelligent control of the entire machine operation, with precise pasting, film feeding, stable material transmission, and precise bag cutting.
2. Double packaging material storage rack, suitable for paper+film, paper+paper bag making methods.
3. New type of roller cutter, capable of producing various specifications of adhesive coatings

Main Data:

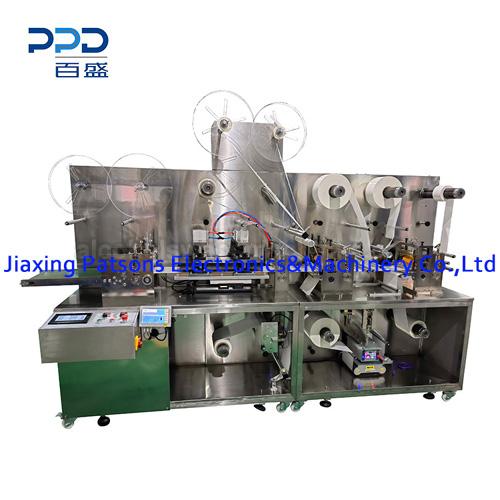

Name:Automatic Medical Dressing Wound Dressing Medical Patch Machine
Model:PPD-MDP100
Wound dressing size:100x60mm
Packaging bag specification: 260x140mm
Specification of bottom support tape: Φ≤ 350mm, width ≤ 220mm, inner diameter of paper core 76.2mm
Release paper specifications: Φ≤ 350mm, width ≤ 130/135mm, inner diameter of paper core 76.2mm
Processing capacity: 0-100 bags/minute (1 piece per bag)
Total power: 220V, 50HZ, motor 7.5KW, heating 4KW

Main configuration:
1. Color touch screen (XINJE)
2. Programmable controller: (XINJE)
3. Drive motors (XINJE)
4. Servo motor (XINJE)
5. Color code positioning system. (YATAI)
6. Discharge conveyor drive motor. (OUBON)
7. Other electrical: relays, switch buttons, etc（CHNT）
