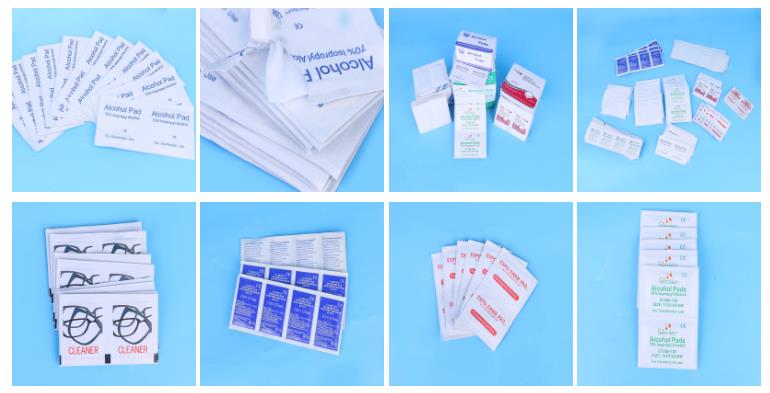

Automatic small bag alcohol cotton pad packaging machine is suit for packaging of alcohol swabs,alcohol prep pad,alcohol wipes,alcohol cotton pad,antispetic pad,medical disinfection wet wipes, isopropyl alcohol wet wipes and lens wipe wipes, computer cleaning wipes, aviation wipes, catering supporting wipes etc in four side seal small packages.

Features:
1.High-sensitivity photoelectric eye color mark tracking, digitally input the sealing and cutting position, making the sealing and cutting position more accurate.
2.Independent PID control of temperature, better adapt to various packaging materials.
3.The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
4.Precise liquid injection volume,adjustable liquid volume quantitative perfusion system.

Main data:

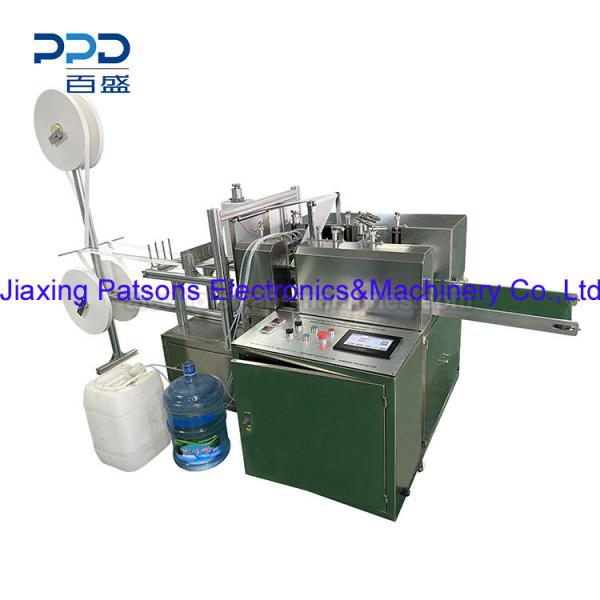

Name: Automatic Small Bag Alcohol Cotton Pad Packing Machine
Model:PPD-2L280
Non-woven width:60cm
Wipe(unfolded):60mm x 30mm
Wipes(folded):30mm x 30mm
Packing size:50mm x 50mm
Process capability:240-280 package/min
Packing materials:73-110g/m2 paper and aluminum compound materials
Packing materials specification:Φ≤350 mm,width 400 mm,papar core inner dia.:76.2mm
Suitable wipes materials:roll shape,40-70g/m2:spun-lace non-woven materials
Non-woven materials specifications:Φ ≤ 600mm ,Width 60 mm
Paper core inner dia: Φ 76.2mm (=3")
Total power:220v ,50hz ,2.6 kw
