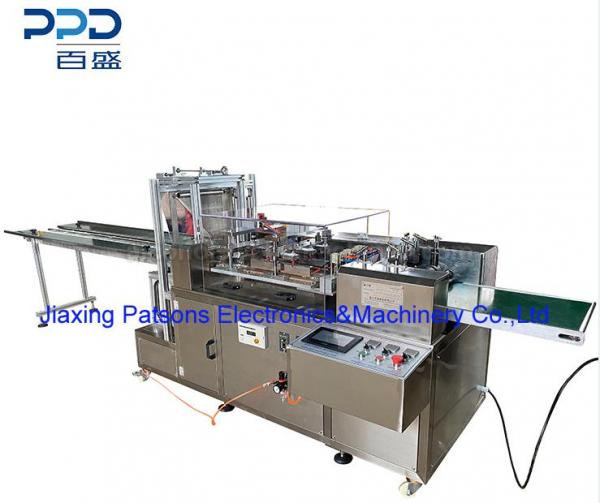

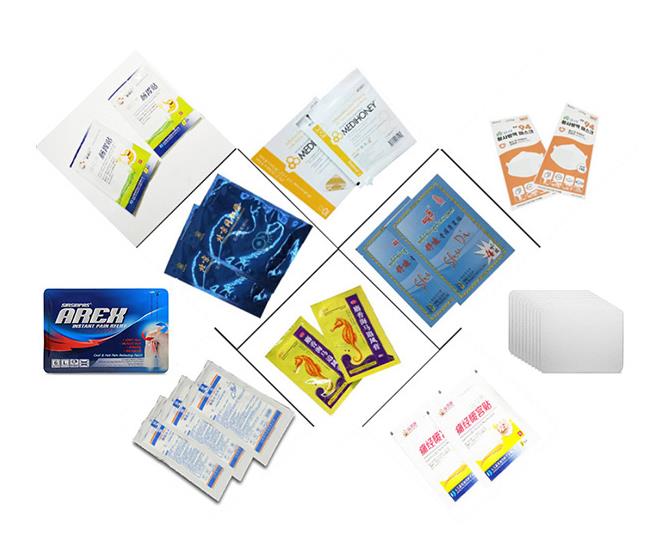

Four side sealing automatic liquid filling packaging machine is a multi-functional machine, which can pack cold compress, antipyretic, dressing, plaster, plaster, eye patch, nose patch, crystal mask patch, mask, latex gloves, warm patch , cooling stickers, mosquito repellent stickers, non-woven sheets, gauze sheets, electrode sheets, pedicure blades, steam eye masks, foot stickers and other four-side sealing products.
This machine is equipped with an automatic liquid filling function, which can add different liquids according to customer requirements.

Features:
1. Color touch screen operation, 4-axis servo drive system, PLC programmable controller intelligently controls the operation of the whole machine, with precise film feeding, stable material transmission, and precise bag cutting.
2. Independent guide column die set and mobile synchronous heat sealing system, the temperature of sealing surface is more uniform and stable.
3. V-shaped easy tear opening, butterfly hole, round hole and other hanging holes are optional.

Process flow:
Manual feeding - bagging - bag making - sealing - cutting - packaged product delivery

Technical Data:
Name: Four Side Sealing Automatic Liquid Filling Packaging Machine
Model: PPD-4SLPM80
Bag size: length 250-450 × width 40-60mm
Processing capacity: 40-80 bags/min
Packaging film material: paper aluminum plastic, pure aluminum, aluminized heat-sealable composite film, etc., Φ≤350mm
Total power: 220V, 50Hz Motor: 2.2KW Heating: 3.3KW
Weight: 720 kg
Packing size: length 2600 × width 1900 × height 1800mm
