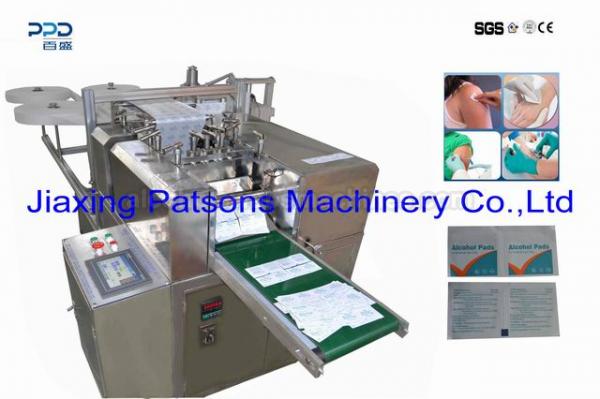

High speed automatic alcohol pad manufacturing machine

High speed automatic alcohol pad manufacturing machine PPD-4L300 is upgraded model with servo motor control for very high speed manufacturing.This machine is all in 1 model from jumbo material roll loading to finished product of alcohol prep pad.
Manufacturing process:
Jumbo roll material(non woven and packing film) loading on machine→folding→cutting→liquid injection on pad in the packet→seal the packet→cutting→finished product alcohol prep pad.

Technical parameter data:
Name: High speed automatic Alcohol prep pad manufacturinging machine
Model: PPD-4L300
Non-woven pad unfold size: L30mm×W60mm
Non-woven Fold size:L30mm×W30mm
Packet size: L50mm×W50mm
Folding way: non woven folded one time,two layers.
Way of adding liquid: at a certain amount
Production ability: 300packet/minute maximum
Pad material:40-80gsm,spunlace nonwoven,diameter 600mm, width 60mm
Packing material: 70-110gsm,aluminum foil for alcohol prep pad,width 400mm
Raw material paper core inner diameter: 76mm/3inch
Total power: 2.6KW
Volt:220-240v,single phase
Gross Weight: 600 kg
Outer dimension: L2500mm×W1000mm×H1500mm
Packing box dimension:L2800mm×W1900mm×H1800mm
