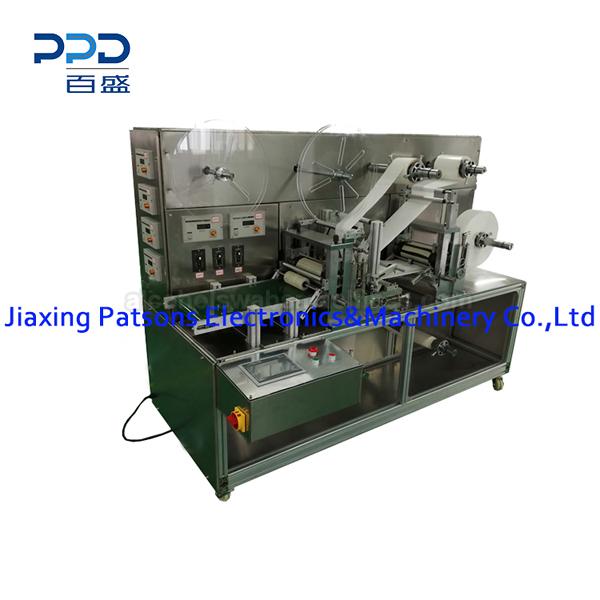

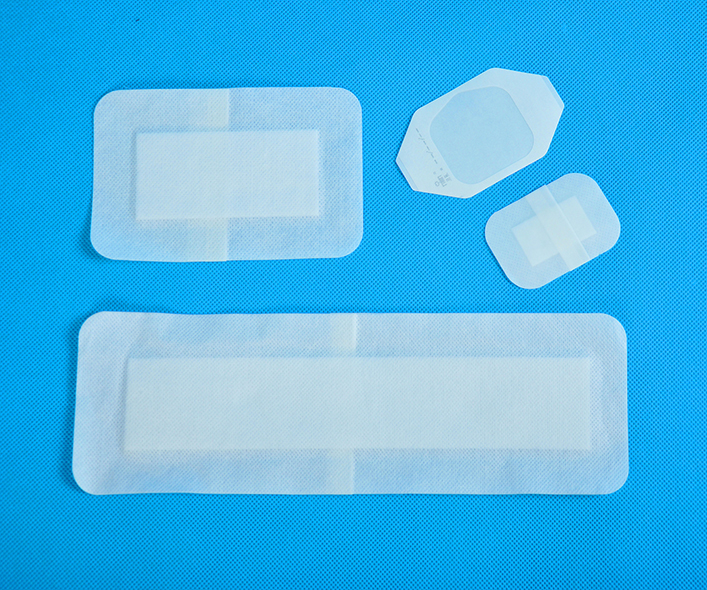

Medical dressing composite slicing machine adopts a continuous composite and rolling cutting process, suitable for processing non-woven fabric dressings, PU waterproof dressings, wound dressings, self-adhesive sterile dressings and other dressing products.

Features：
1. Machine is driven by a servo motor and intelligently controlled by a PLC programmable controller to operate the entire machine.
2. The colorful 7-inch touch screen interface provides flexible and convenient operation.
3. Machine adopts a circular roller cutting system. The cutting tool can be directly designed as a full cut or half cut mode. Knife adjustment is easy and effortless, with just a simple adjustment of pressure.

Production process:
Adhesive tape on machine → tape lamination and peeling → Water absorption pad roller cutting → pasting onto tape → Left and right release paper folding and laminating → Roller cutting and forming → output of finished products (automatic counting)

Main Data:
Name: Medical Dressing Composite Slicing Machine
Model: PPD-WDCM300
Application specification: length 300 x width 100mm
Cotton core specification: length 250 x width 50mm
Specification of base tape: non-woven fabric tape, breathable PE tape, PU tape, and other substrates, Φ≤ 400mm, width ≤ 350mm, inner diameter of paper core 76.2mm
Processing capacity: 0-150 pieces/minute
Total power: 220V, 50HZ, 4KW
Weight: 720 kg
Packing size: L:2200 × W:1400 × H:1600mm
