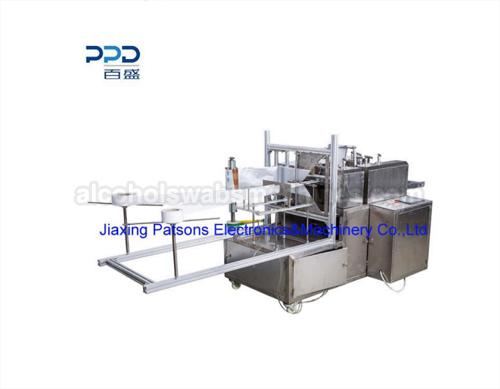

2 Lanes 3M automatic alcohol pad packaging machine works steadily and continuously, its suitable for the production various kind of four-side sealing products of all types alcohol swabs/pad,wet wipes/tissue, BZK antispetic swab,povidone iodine prep pad,nail remover pad and so on.
It is fully automatic model with 2 lanes production,servo control system for user friendly.
Machine is easy to operate, with servo motor and PLC touch panel, which can adjust the packing temperature, packing speed and nonwoven length accordingly.

Production procedure:
Nonwoven cloth load o the machine→folding→cutting→adding alcohol liquid→into the bags→making the bags→sealing the bags→cutting→sealing into final product.

Main technical paramaters:
Name: Automatic Alcohol Swab Making Machine
Model: PPD-2L140-3M
Nonwoven fabric width:80mm
Alcohol pad unfold size:80*40mm
Alcohol pad folded size:40*40mm
Sachet size:60*65mm
Process capability:120-140package/min
Packing materials: 73-110g/㎡ paper,PE,OPP,PET,aluminium materials Packing materials specs:OD≤350 mm, inner diameter.:76.2mm Suitable wipes materials: nonwoven material,OD ≤ 600mm,
width:80 mm,inner dia :3inch
Total power: 2.6 kw
Voltage: 220v ,50hz
NOTE:Different sizes can be customized.
