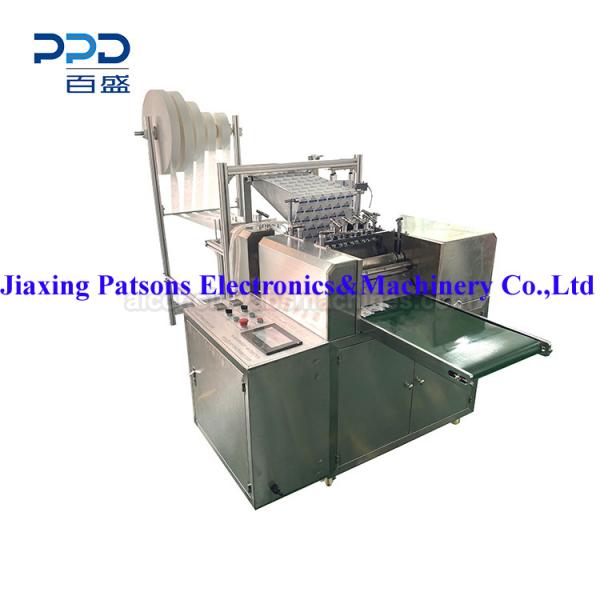

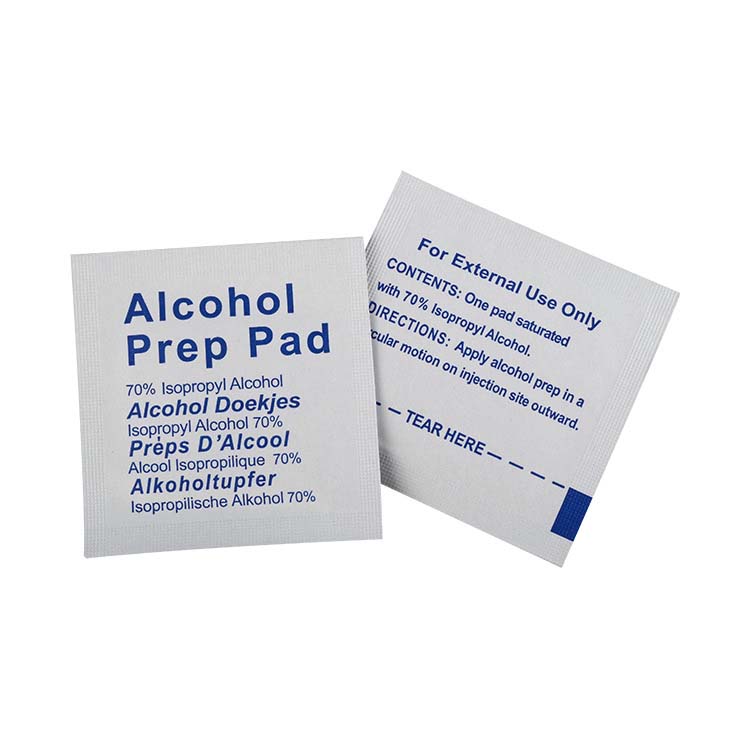

Fully automatic 5 lanes alcohol pad making machine is suitable for packaging disposable disinfected alcohol pad,alcohol swab,alcohol tissue,alcohol wipes,cotton pad,nonwoven pad etc.
Fully automatic 5 lanes alcohol pad making machine is suitable for packaging disposable disinfected alcohol pad,alcohol swab,alcohol tissue,alcohol wipes,cotton pad,nonwoven pad etc.
Machine adopts servo motor, which is more efficient and stable, easy to operate and has a low failure rate.
Features:
1. Sealing device: intelligent temperature control, stable temperature, small fluctuation range, hot pressure sealing, adjustable pressure, smooth and beautiful sealing.
2. Filling system: Different liquid volumes can be adjusted to achieve quantitative filling and prevent leakage of liquid.
3. Stainless steel structure: All stainless steel non-woven fabric unwinding, folding and slicing structure, the product cleanliness meets the standard.
4. Display control surface: intelligent control touch screen, the panel adopts brand products, which is simple and convenient to operate.
5. 5 lanes production, high-speed operation, high efficiency.
Technical Data:
Name: Fully Automatic 5 Lanes Alcohol Pad Making Machine
Model: PPD-5L500
Cotton piece unfolded size: 60*30mm
Cotton sheet folded size: 30*30mm
Folding method of wet wipes: fold once, 2 layers
Bag size:50*50mm
Processing capacity: 300-500 bags/min
Packaging film material: 73-110g/㎡ paper aluminum film composite packaging paper
Packaging film specifications: OD≤500mm, width 500mm, inner diameter of paper core:3inch
Applicable raw materials for wet wipes: coiled, 30-60g/㎡ spunlaced non-woven fabric
Non-woven fabric raw material specifications: diameter ≤ 600mm, width 60mm
Inner diameter of raw paper core: 3inch
Voltage: 220V, 50hz
Power:Heating: 4.2kw,Motor: 0.8 kw
