Automatic Nonwoven Fabric Slitter Rewinder PPD-ANWS1800

Automatic Nonwoven Fabric Slitter Rewinder » PPD-ANWS1800

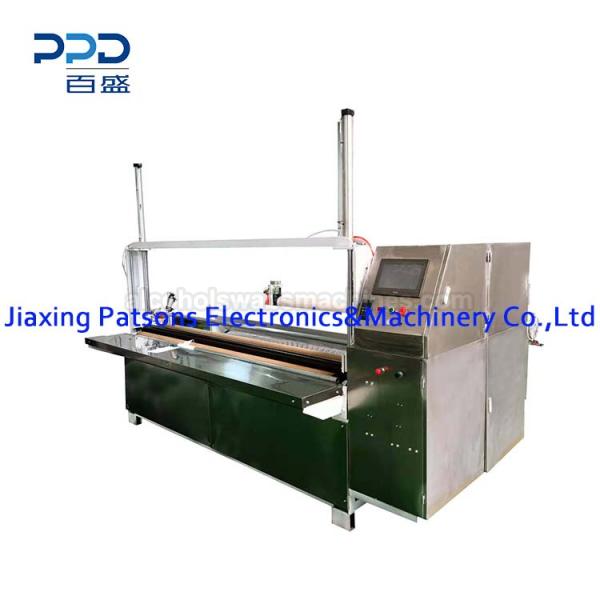

Pictures available of Automatic Nonwoven Fabric Slitter Rewinder:

PPD-ANWS1800

Automatic Nonwoven Fabric Slitter Rewinder

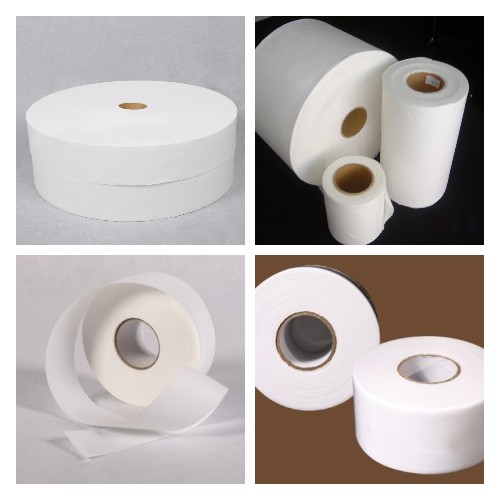

Automatic nonwoven fabric slitter rewinder is ideal for slitting rewinding of PP nonwoven fabric,spulance nonwoven fabic,needle nonwoven fabric etc.

Enquiry Now

Automatic Nonwoven Fabric Slitter Rewinder Details

Automatic nonwoven fabric slitter rewinder is ideal for slitting rewinding of PP nonwoven fabric,spulance nonwoven fabic,needle nonwoven fabric etc.
Machine works with servo drive system,PLC programmable controller intelligently controls the operation of the whole machine, stably transmits materials.

Features:
1. It is equipped with pneumatic automatic feeding device, with a large bearing capacity of about 350KG, which is convenient for operation.
2. It is equipped with a round air knife for slitting, which is convenient for size adjustment, smooth cutting,light and stable, neat for slitting, and smooth without burrs on the end face.
3. The air distribution expansion shaft shall be reeled in order.
4. The table top of the whole machine and the parts that are easy to cause sanitary impact on the products are all made of stainless steel.



Main Data:
Name:Automatic Nonwoven Fabric Slitter Rewinder
Model:PPD-ANWS1800
Jumbo roll width:1800mm
Jumbo roll outer diameter:max1000mm
Jumbo roll inner diameter:3inch
Product roll width:40-1800mm
Product roll innder diameter:3inch
Product roll outer diameter:max1000mm
Speed: 100-300 m/min
Power: 2.5-7.5 kw
Voltage:380V,50Hz

Automatic Nonwoven Fabric Slitter Rewinder(Nonwoven Cloth Cutting Machine) has been presented above, want more related products, please click the category below.
